  • ZH Self-Priming Chemical Centrifugal Pump

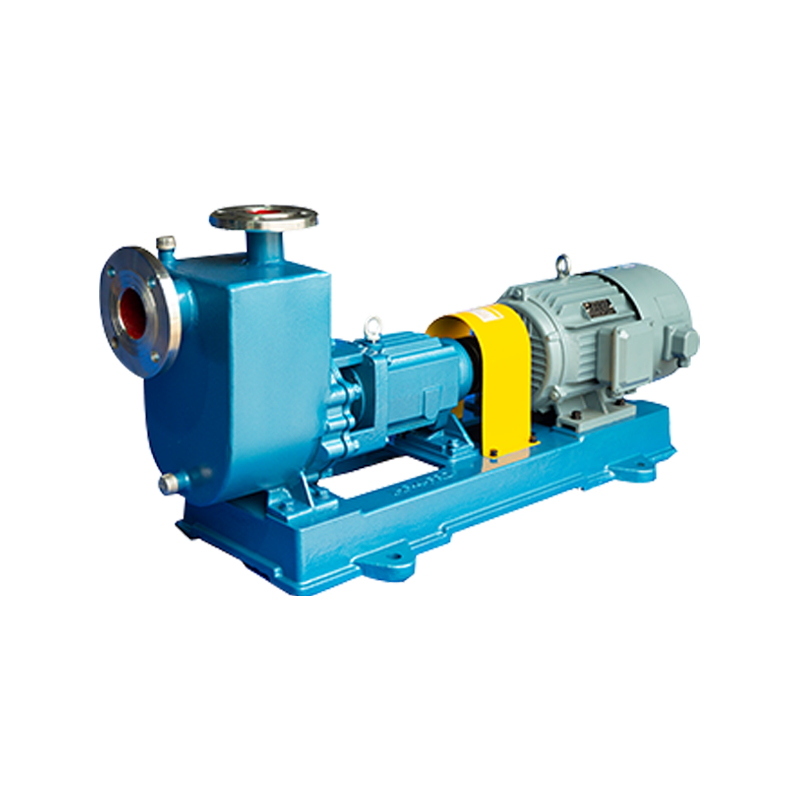

ZH Self-Priming Chemical Centrifugal Pump

Flow rate: 1.6-400m /h, head of 5~125m(suction height within 5m)

ZH series self-priming chemical centrifugal pump is a kind of single stage single priming self-priming chemical centrifugal pump developed and proabroad. The pump is suitable for conveying a temperature of 0C-150C, containing solid particles less than 3 mm corrosive media. Reduced by our company combined with similar products at home according to the different transmission mediums, ZH type self-priming chemical centrifugal pump contact liquid part of the material can be selected cast iron, cast steel, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 316, 316L and other materials manufacturing. Flow rate: 1.6-400m /h, head of 5~ 125m(suction height within 5m)ZH series self-priming chemical centrifugal pump is a kind of single-stage single priming self-priming chemical centrifugal pump developed and produced by our company combined with similar products at home and abroad. The pump is suitable for conveying a temperature of 0C-150C, containing solid particles less than 3 mm corrosive media. According to the different transmission mediums, ZH type self-priming chemical centrifugal pump contact liquid part of the material can be selected cast iron, cast steel, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 316, 316L, and other materials manufacturing.

No previous article   |   NEXT

+ Contact us + Catalogue Download

Product Description

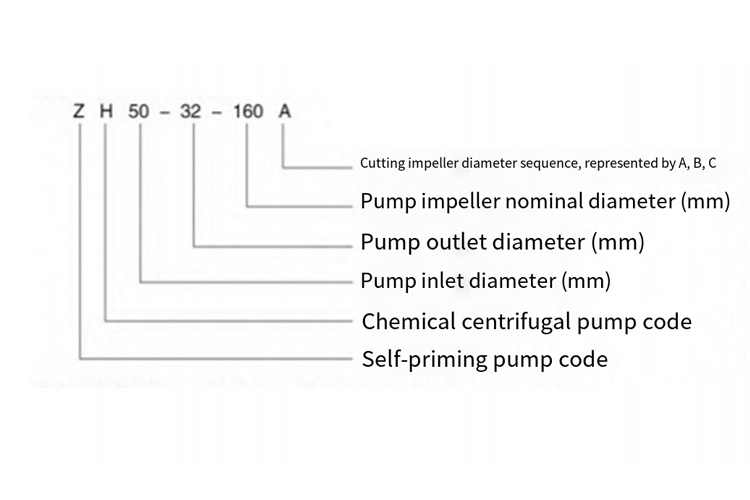

ZH Structure and material & Model sense

Model and technical data

Type Rated pump Speed n=2900r/min Rated pump Speed n=1450r/min
Q Capacitym³/h H Head m Motor PowerkW Q Capacitym³/h H Head m Motor PowerkW
ZH25-25-125 3.2  20  1.1  1.6  5  0.55
ZH25-25-160 3.2  32  2.2  1.6  8  0.55
ZH25-25-200 3.2  50  5.5  1.6  12.5  0.75
ZH25-25-250 3.2  80  7.5  1.6  20  1.5
ZH40-32-125 6.3  20  1.5  3.2  5  0.55
ZH40-32-160 6.3  32  3  3.2  8  0.55
ZH40-32-200 6.3  50  5.5  3.2  12.5  1.1
ZH40-32-250 6.3  80  11  3.2  20  2.2
ZH50-32-125 12.5  20  3  6.3  5  0.55
ZH50-32-160 12.5  32  4  6.3  8  0.55
ZH50-32-200 12.5  50  7.5  6.3  12.5  1.1
ZH50-32-250 12.5  80  15  6.3  20  2.2
ZH65-50-125 25  20  4  12.5  5  0.55
ZH65-50-160 25  32  7.5  12.5  8  1.5
ZH65-40-200 25  50  11  12.5  12.5  2.2
ZH65-40-250 25  80  22  12.5  20  3
ZH65-40-315 25  125  37  12.5  32  5.5
ZH80-65-125 50  20  7.5  25  5  0.75
ZH80-65-160 50  32  11  25  8  1.5
ZH80-50-200 50  50  18.5  25  12.5  2.2
ZH80-50-250 50  80  37  25  20  4
ZH80-50-315 50  125  75  25  32  7.5
ZH100-80-125 100  20  15  50  5  15
ZH100-80-160 100  32  22  50  8  2.2
ZH100-65-200 100  50  37  50  12.5  4
ZH100-65-250 100  80  45  50  20  5.5
ZH100-65-315 100  125  75  50  32  11
ZH125-100-200 200  50  55  100  12.5  7.5
ZH125-100-250 200  80  75  100  20  11
ZH125-100-315 200  125  110  100  32  18.5
ZH125-100-400 100  50  37
ZH150-125-250 200  20  18.5
ZH150-125-315 200  32  37
ZH150-125-400 200  50  75
ZH200-150-250 400  20  55
ZH200-150-315 400  32  75
ZH200-150-400 400  50  110
+ Understand detailed product parameters
