Flow range: 3.6~200m3/h Head range: 5~80m Applicable temperature: -20°C~150°C
Applicable temperature:-20° C-150° C

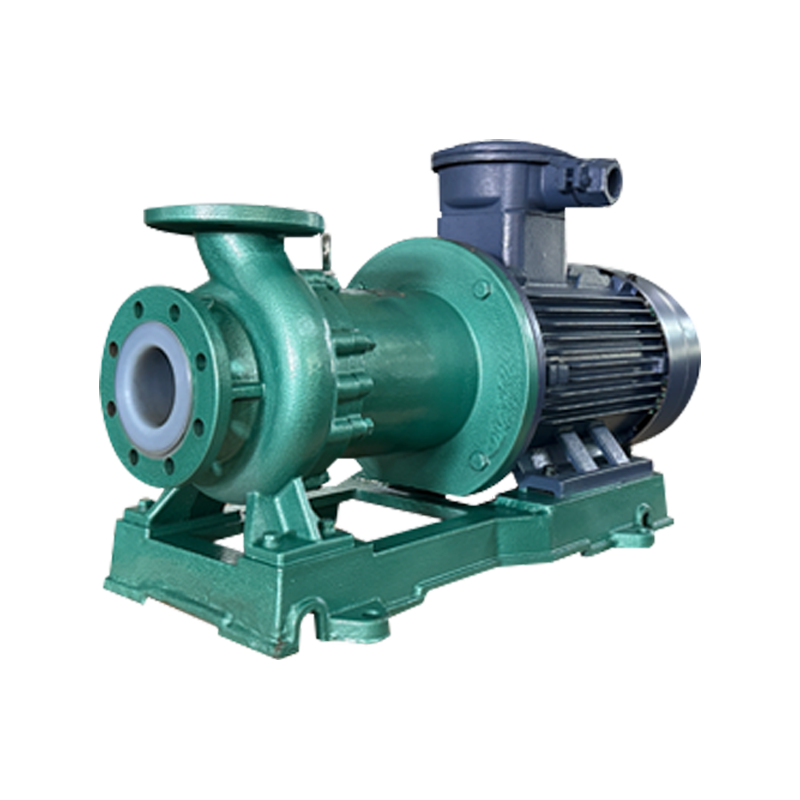

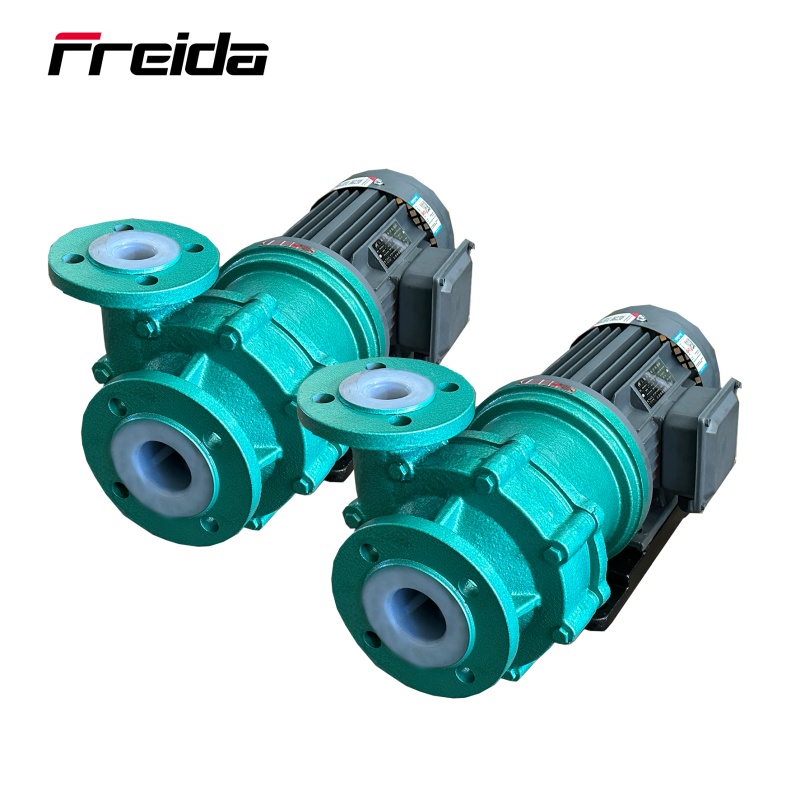

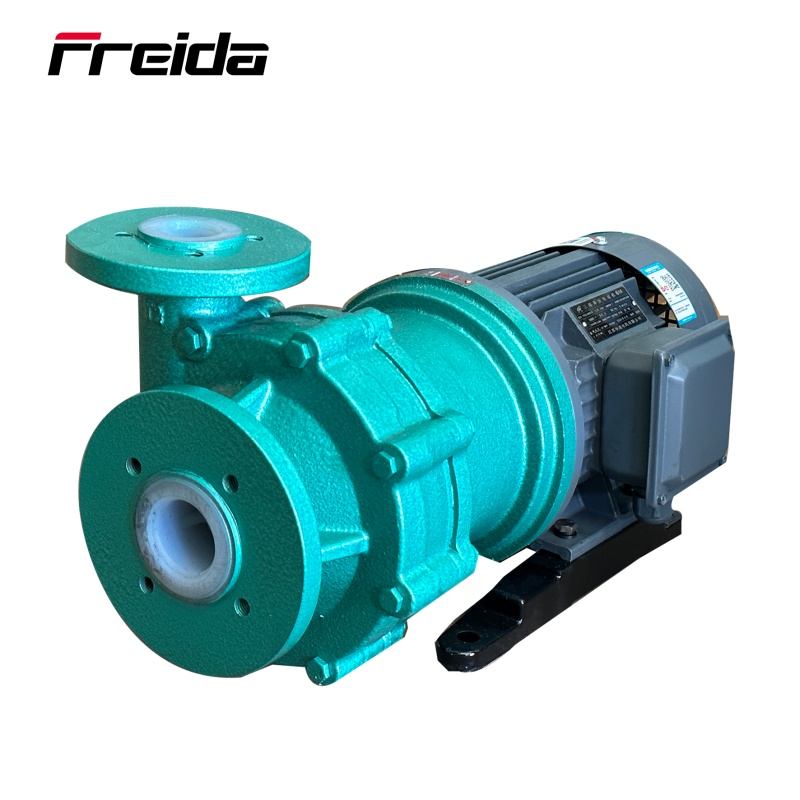

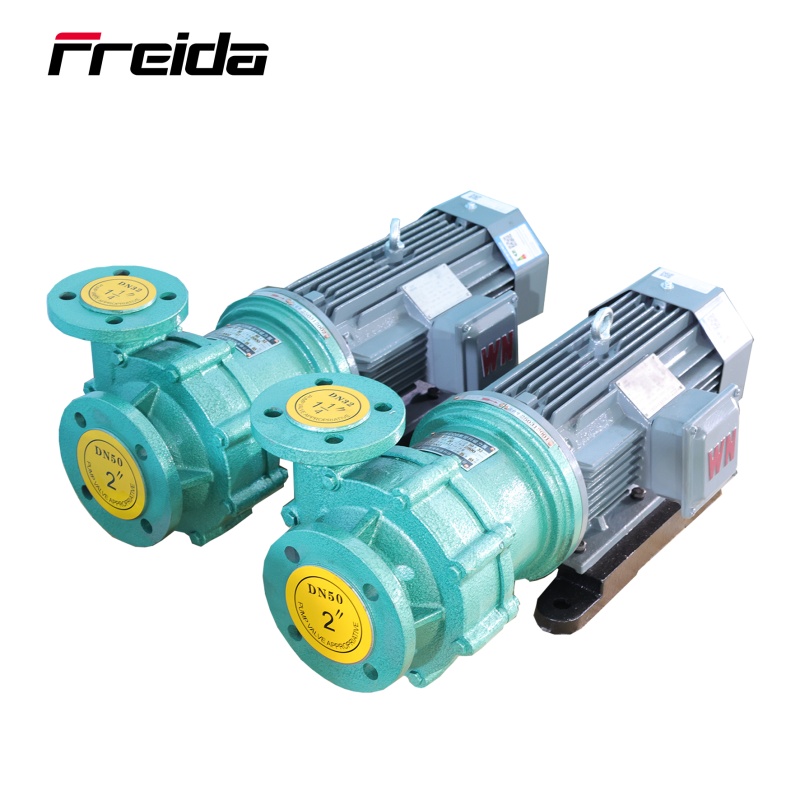

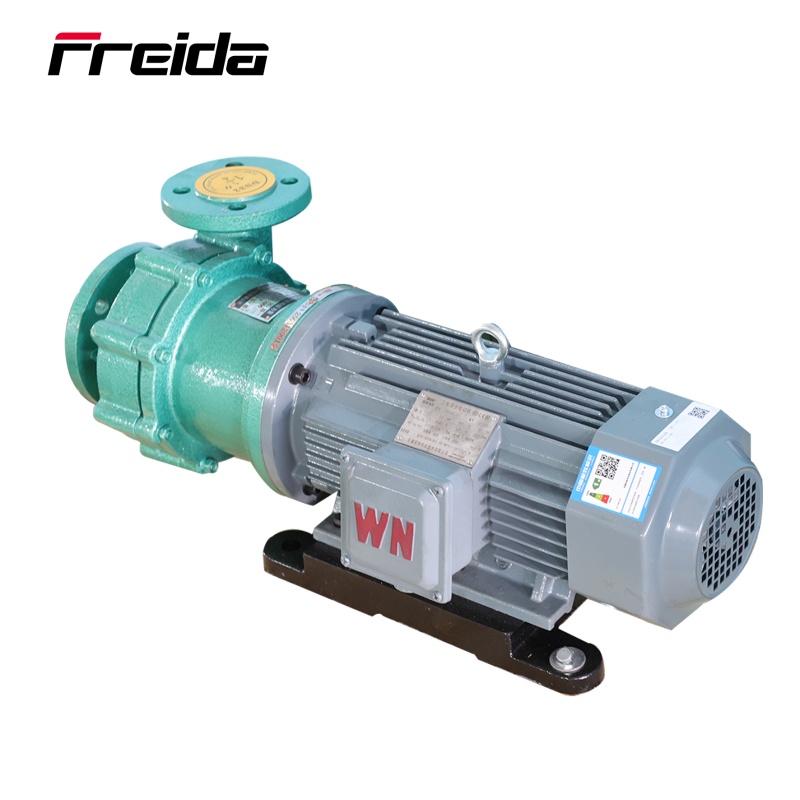

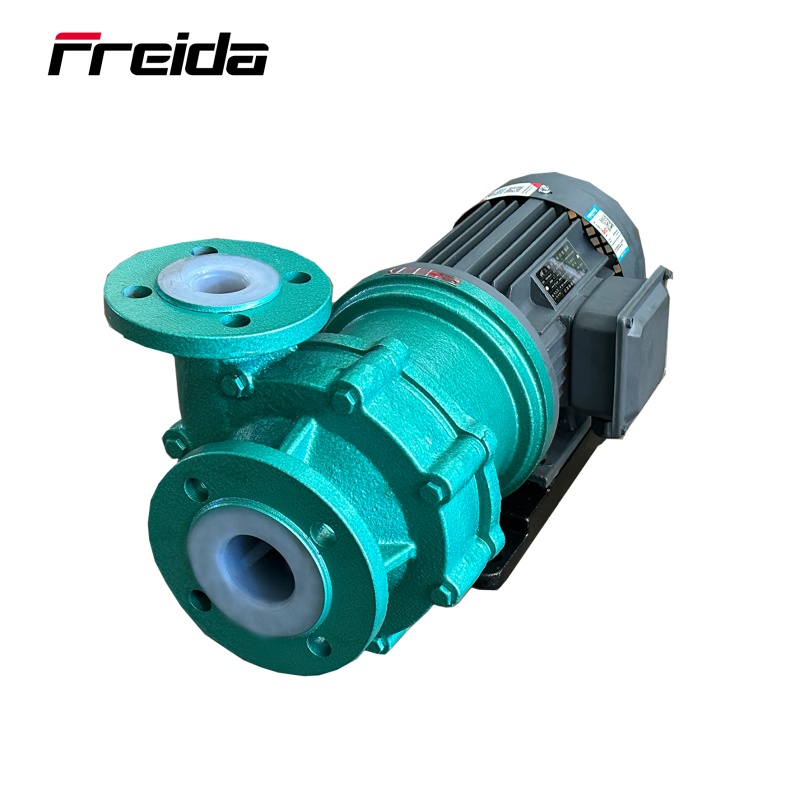

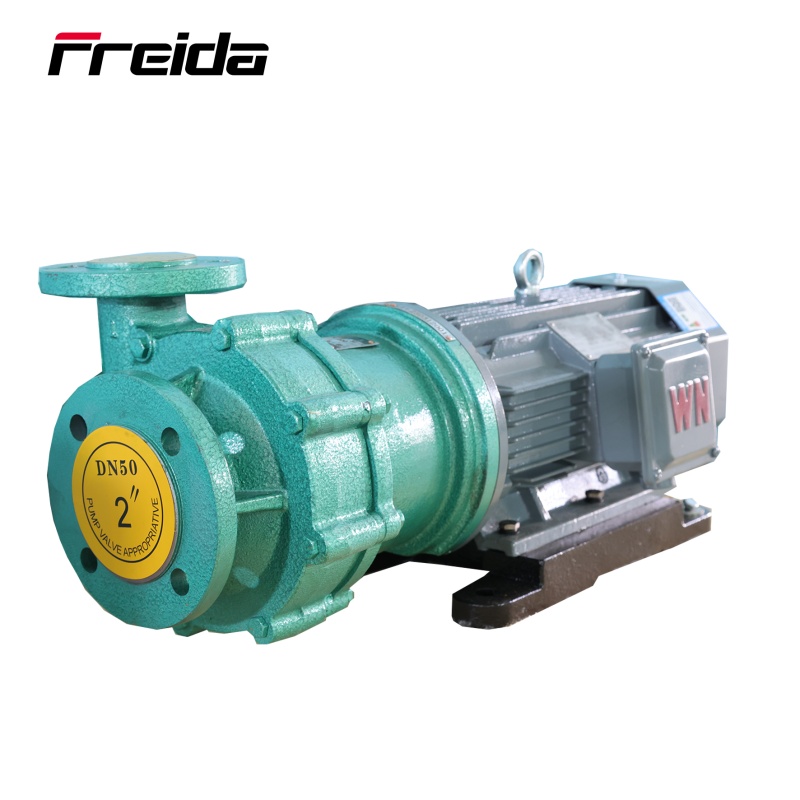

CQB series fluorine plastic magnetic pump, using magnetic coupling drive, without dynamic seal point, solving general shaft drive centrifugal pump seal outside run, drip problem. Flow components use fluorine plastic and high-purity industrial ceramics,lt has excellent corrosion resistance and seal ability, widely used in chemical, pharmaceutical, aluminum foil, acid, paint, and other non-ferrous metal industries and explosive, volatile, toxic transport, organic solvents, and precious liquids.

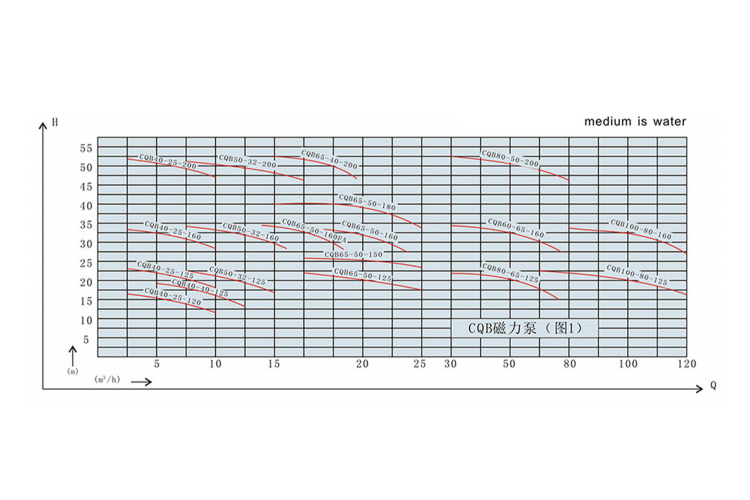

Number | Model | Rev=2950r/min Dielectric density=1000kg/M³ | |||||||
Flow (m³/h) |
Pump head (m) |
η (%) |
Inlet (mm) |
Outlet (mm) |
Npsh (m) |
Power (kw) |
Weight (kg) |
||
1 | CQB32-20-110F | 4 | 13.5 | 35 | Φ32 | Φ20 | 6 | 0.55 | 18 |
*5.5 | 13 | ||||||||
2 | CQB32-25-125F | 2.5 | 21 | 37 | Φ32 | Φ20 | 6 | 1.5 | 20 |
*3.2 | 20 | ||||||||
3 | CQB32-20-160FS | 2.5 | 33 | 38 | Φ32 | Φ20 | 5 | 1.5 | 50 |
*3.2 | 32 | ||||||||
4 | CQB40-25-120E | 4 | 15.5 | 42 | Φ40 | Φ25 | 5 | 0.75 | 35 |
*6.3 | 15 | ||||||||
8 | 12 | ||||||||
5 | CQB40-25-125F | 4 | 22 | 41 | Φ40 | Φ25 | 4.5 | 1.5 | 54 |
*6.3 | 20 | ||||||||
8 | 16 | ||||||||
6 | CQB40-25-160FS | 4 | 33 | 36 | Φ40 | Φ25 | 5 | 2.2/3 | 55 |
*6.3 | 32 | ||||||||
8 | 29 | ||||||||
7 | COB40-25-200F | 4 | 51 | 25 | Φ40 | Φ25 | 4.5 | 5.5 | 100 |
*6.3 | 50 | ||||||||
10 | 48 | ||||||||
8 | CQB50-32-125F | 7 | 22 | 42 | Φ50 | Φ32 | 3.5 | 1.5 | 45 |
*12.5 | 20 | ||||||||
15 | 16 | ||||||||
9 | CQB50-32-160FS | 7 | 33 | 40 | Φ50 | Φ32 | 3.5 | 4 | 80 |
*12.5 | 32 | ||||||||
15 | 29 | ||||||||
10 | CQB50-32-200F | 7 | 52 | 32 | Φ50 | Φ32 | 3.5 | 7.5 | 150 |
*12.5 | 50 | ||||||||
15 | 45 | ||||||||
11 | CQB65-50-125FS | 15 | 22 | 48 | Φ65 | Φ50 | 4 | 4 | 100 |
*20 | 20 | ||||||||
25 | 15 | ||||||||
12 | CQB65-50-125F | 15 | 22 | 46 | Φ65 | Φ50 | 4 | 4 | 130 |
*25 | 20 | ||||||||
30 | 18 | ||||||||
13 | CQB65-50-160FS | 15 | 33 | 40 | Φ65 | Φ50 | 4 | 5.5 | 120 |
*25 | 32 | ||||||||
35 | 28 | ||||||||
14 | CQB65-50-160F | 15 | 33 | 40 | Φ65 | Φ50 | 4 | 5.5 | 135 |
*25 | 32 | ||||||||
35 | 28 | ||||||||
15 | CQB65-40-200F | 15 | 51 | 48 | Φ65 | Φ40 | 4 | 11 | 180 |
*25 | 50 | ||||||||
30 | 48 | ||||||||
16 | CQB80-65-125F | 35 | 22 | 51 | Φ80 | Φ65 | 4 | 7.5 | 95 |
*50 | 20 | ||||||||
60 | 18 | ||||||||
17 | CQB80-65-160F | 35 | 32 | 60 | Φ80 | Φ65 | 4 | 11 | 180 |
*50 | 32 | ||||||||
60 | 27 | ||||||||
18 | CQB80-50-200F | 35 | 51 | 60 | Φ80 | Φ50 | 4 | 18.5 | 195 |
*50 | 50 | ||||||||
60 | 45 | ||||||||
19 | CQB100-80-125F | 65 | 22 | 62 | Φ100 | Φ80 | 5 | 11 | 180 |
*100 | 20 | ||||||||
110 | 18 | ||||||||
20 | CQB100-80-160F | 65 | 36 | 56 | Φ100 | Φ80 | 5 | 18.5 | 220 |
*100 | 32 | ||||||||
120 | 26 |
Outside Mode |
Outside and installing size | Inlet flange size | Outlet flange size | ||||||||||||||
L | S | P | F | W | T | H | h | X | C | a | b | n-Φd | k | g | 1 | n-Φt | |
CQB32-20-110F | 430 | 200 | 125 | 65 | 148 | 115 | 215 | 105 | 60 | 32 | 120 | 90 | 4-Φ14 | 20 | 90 | 65 | 4-Φ11 |
CQB32-20-125F | 435 | 265 | 65 | 50 | 180 | 150 | 244 | 110 | 67 | 32 | 140 | 90 | 4-M16 | 20 | 100 | 75 | 4-Φ11 |
CQB40-25-120F | 435 | 265 | 65 | 50 | 180 | 150 | 244 | 110 | 67 | 40 | 140 | 100 | 4-M12 | 25 | 100 | 75 | 4-Φ11 |
CQB40-25-125F | 440 | 265 | 75 | 50 | 180 | 150 | 244 | 110 | 67 | 40 | 140 | 90 | 4-M12 | 25 | 100 | 75 | 4-Φ11 |
CQB50-32-125F | 510 | 265 | 100 | 85 | 180 | 150 | 270 | 125 | 76 | 50 | 130 | 100 | 4-Φ13 | 32 | 120 | 90 | 4-Φ11 |
Outside Mode |
Outside and installing size | Inlet flange size | Outlet flange size | ||||||||||||||||
L | S | f | W | T | H | h | P | C | a | b | n-Φd | k | g | i | n-Φt | ||||
CQB32-20-160FS | 578 | 225 | 85 | 220 | 180 | 330 | 170 | / | 32 | 140 | 100 | 4-M16 | 20 | 100 | 75 | 4-M12 | |||
CQB40-25-160FS | 625 | 225 | 85 | 220 | 180 | 330 | 170 | / | 40 | 150 | 110 | 4-Φ18 | 25 | 115 | 85 | 4-M12 | |||
CQB50-32-160FS | 625 | 225 | 85 | 225 | 220 | 330 | 170 | / | 50 | 165 | 125 | 4-Φ18 | 32 | 140 | 100 | 4-Φ18 | |||
CQB50-32-160FA | 654 | 530 | 80 | 370 | 330 | 352 | 192 | 90 | 50 | 165 | 125 | 4-Φ18 |
32 |
140 |
140 |
4-Φ18 | |||
CQB65-50-125FS | 625 | 225 | 85 | 260 | 220 | 330 | 170 | / | 65 | 185 | 145 | 4-Φ18 | 50 | 165 | 140 | 4-Φ18 |
|||
CQB65-50-160FS | 760 | 350 | 105 | 260 | 220 | 330 | 170 | / | 65 | 185 | 145 | 4-Φ18 | 50 | 165 | 165 | 4-Φ18 |
Outside Mode |
Outside and installing size | Inlet flange size | Outlet flange size | ||||||||||||||||
L | B | S | P | W | T | Y | Q | H | h | f | C | a | b | n-Φd | k | g | I | n-Φt | |
CQB40-25-200F | 740 | 620 | 450 | 80 | 370 | 330 | / | / | 420 | 240 | 80 | 50 | 165 | 125 | 4-Φ18 | 25 | 115 | 85 | 4-M12 |
CQB50-32-200F | 740 | 620 | 450 | 80 | 370 | 330 | / | / | 420 | 240 | 80 | 50 | 165 | 125 | 4-Φ18 | 32 | 140 | 100 | 4-Φ18 |
CQB65-50-125F | 705 | 560 | 400 | 80 | 340 | 300 | / | / | 177 | 317 | 80 | 65 | 185 | 145 | 4-Φ18 | 50 | 165 | 165 | 4-Φ18 |
CQB65-50-160F | 720 | 620 | 450 | 80 | 370 | 330 | / | / | 212 | 372 | 80 | 65 | 185 | 145 | 4-Φ18 | 50 | 165 | 165 | 4-Φ18 |
CQB65-40-200F | 1035 | 750 | 500 | 100 | 440 | 405 | 380 | 340 | 415 | 235 | 100 | 65 | 185 | 145 | 4-Φ18 | 40 | 150 | 110 | 4-Φ18 |
CQB80-65-125F | 750 | 620 | 450 | 80 | 370 | 330 | / | / | 212 | 373 | 100 | 80 | 200 | 160 | 4-Φ18 | 65 | 185 | 145 | 4-Φ18 |
CQB80-65-160F | 1035 | 850 | 550 | 125 | 460 | 415 | 380 | 340 | 415 | 235 | 100 | 80 | 200 | 160 | 4-Φ18 | 65 | 185 | 145 | 4-Φ18 |
CQB80-50-200F | 1050 | 750 | 500 | 100 | 440 | 405 | 380 | 340 | 435 | 235 | 105 | 80 | 200 | 160 | 4-Φ18 | 50 | 185 | 125 | 4-Φ18 |
CQB100-80-125F | 1050 | 850 | 550 | 125 | 460 | 415 | 380 | 340 | 415 | 235 | 110 | 100 | 220 | 180 | 4-Φ18 | 80 | 200 | 160 | 4-Φ18 |
CQB100-80-160F | 1085 | 850 | 550 | 125 | 460 | 415 | 380 | 340 | 435 | 235 | 100 | 100 | 220 | 180 | 4-Φ18 | 80 | 200 | 160 | 4-Φ18 |
